It is a hydraulic 3-roller rolling machine. It is used at room temperature and with this machine you can finish all the processes including pre-bending(end-bending), rolling a plate and setting it round at one time without turning back after feeding the plate.
|
Model |
Pressure (Ton) |
Max bending thickness (mm) |
Max rolling length mm |
Upper roller diameter mm |
Down roller diameter mm |
Rollers distance |
Motor kw |
|||
|
Pre-bending mm |
Max bending mm |
mm |
Driving |
Hydraulic |
Moving |
|||||
|
W11S-6x1500 |
25 |
4.8 |
6 |
1500 |
175 |
125 |
160 |
3 |
2.2 |
0.75 |
|
W11S-6x2000 |
25 |
4.8 |
6 |
2000 |
195 |
125 |
160 |
3 |
2.2 |
0.75 |
|
W11S-6x2500 |
25 |
4.8 |
6 |
2500 |
205 |
135 |
180 |
3 |
2.2 |
0.75 |
|
W11S-6x3000 |
37 |
4.8 |
6 |
3000 |
215 |
135 |
180 |
4 |
2.2 |
0.75 |
|
W11S-8x1500 |
25 |
6.4 |
8 |
1500 |
175 |
125 |
160 |
3 |
2.2 |
0.75 |
|
W11S-8x2000 |
25 |
6.4 |
8 |
2000 |
195 |
125 |
160 |
3 |
2.2 |
0.75 |
|
W11S-8x2500 |
37 |
6.4 |
8 |
2500 |
205 |
135 |
180 |
4 |
2.2 |
0.75 |
|
W11S-8x3000 |
45 |
6.4 |
8 |
3000 |
215 |
135 |
180 |
4 |
2.2 |
0.75 |
|
W11S-10x1500 |
37 |
8 |
10 |
1500 |
205 |
135 |
180 |
4 |
2.2 |
0.75 |
|
W11S-10x2000 |
45 |
8 |
10 |
2000 |
215 |
135 |
180 |
4 |
2.2 |
0.75 |
|
W11S-10x2500 |
45 |
8 |
10 |
2500 |
235 |
135 |
180 |
4 |
2.2 |
0.75 |
|
W11S-10x3000 |
65 |
8 |
10 |
3000 |
245 |
135 |
180 |
5.5 |
4 |
0.75 |
|
W11S-10x4000 |
75 |
8 |
10 |
4000 |
255 |
150 |
245 |
7.5 |
4 |
1.1 |
|
W11S-12x2000 |
65 |
9.6 |
12 |
2000 |
250 |
145 |
200 |
5.5 |
4 |
0.75 |
|
W11S-12x2500 |
65 |
9.6 |
12 |
2500 |
255 |
150 |
245 |
5.5 |
4 |
0.75 |
|
W11S-12x3000 |
75 |
9.6 |
12 |
3000 |
270 |
150 |
245 |
7.5 |
4 |
1.1 |
|
W11S-12x6000 |
100 |
9.6 |
12 |
6000 |
290 |
150 |
245 |
15 |
5.5 |
1.5 |
|
W11S-16x2000 |
75 |
12.8 |
16 |
2000 |
255 |
150 |
245 |
7.5 |
4 |
1.1 |
|
W11S-16x2500 |
100 |
12.8 |
16 |
2500 |
270 |
150 |
245 |
15 |
5.5 |
1.5 |
|
W11S-16x3200 |
100 |
12.8 |
16 |
3200 |
290 |
150 |
245 |
15 |
5.5 |
1.5 |
|
W11S-16x6000 |
190 |
12.8 |
16 |
6000 |
300 |
165 |
270 |
22 |
7.5 |
4 |
|
W11S-20x2000 |
100 |
16 |
20 |
2000 |
325 |
165 |
270 |
15 |
5.5 |
1.5 |
|
W11S-20x2500 |
130 |
16 |
20 |
2500 |
330 |
180 |
300 |
15 |
5.5 |
1.5 |
|
W11S-20x3000 |
160 |
16 |
20 |
3000 |
350 |
180 |
300 |
18.5 |
7.5 |
2.2 |
|
W11S-25x2500 |
190 |
20 |
25 |
2500 |
350 |
180 |
300 |
18.5 |
7.5 |
2.2 |
|
W11S-30x2500 |
230 |
25 |
30 |
2500 |
410 |
235 |
380 |
30 |
11 |
4 |
|
W11S-30x3000 |
380 |
25 |
30 |
3000 |
459 |
250 |
400 |
30 |
11 |
4 |
|
W11S-40x2500 |
380 |
35 |
40 |
2500 |
500 |
275 |
460 |
45 |
22 |
5.5 |
|
W11S-40x3200 |
430 |
35 |
40 |
3200 |
540 |
290 |
500 |
55 |
22 |
5.5 |
|
W11S-50x2500 |
540 |
45 |
50 |
2500 |
590 |
340 |
610 |
45 |
22 |
11 |

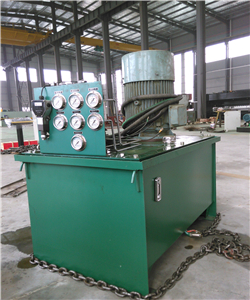

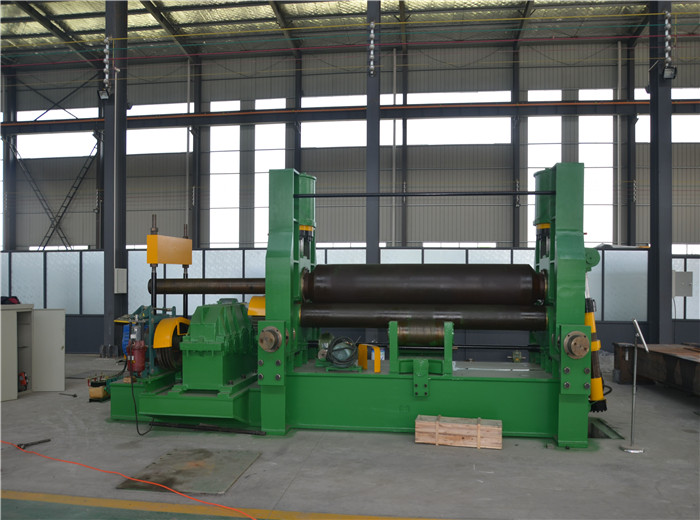

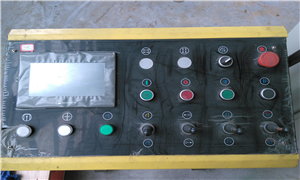

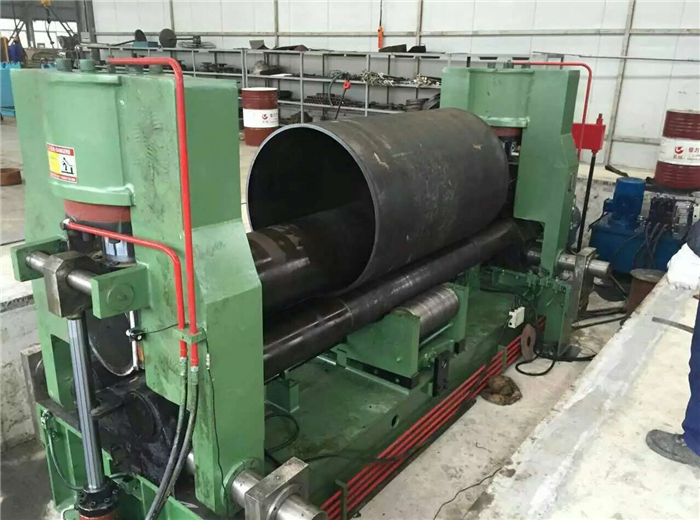

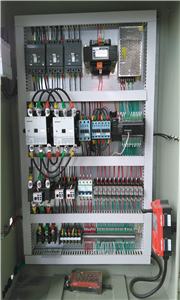

Photos for reference(Main Configuration)
